TGO SERIES (Outdoor application)
Home | Transparent Glass Series | TGO SERIES (Outdoor application)
Transparent Glass-Technical Specification
Types TGO-0307/TGO-0510/TGO-1010
Features
- Lightweight only 5.5kg to 7.5kg per square meter. Aluminum profile.
- High Transparent from 55% to 67%.
- LED Luminescent Design SMD patch technology, easy mechanization and mass production.
- No Steel modular design, simple and beautiful appearance. Easy installation and transportation. The structure can be reduced, and the steel weight of each square can be reduced by about 60kg.
- Go Green transparent glass be produced, delivered, installed and disposed of more efficiently and cost effectively. Fan-less design.
- Maintain Front or rear installation optionality.
- In protection Grade IP65 outdoor applications.

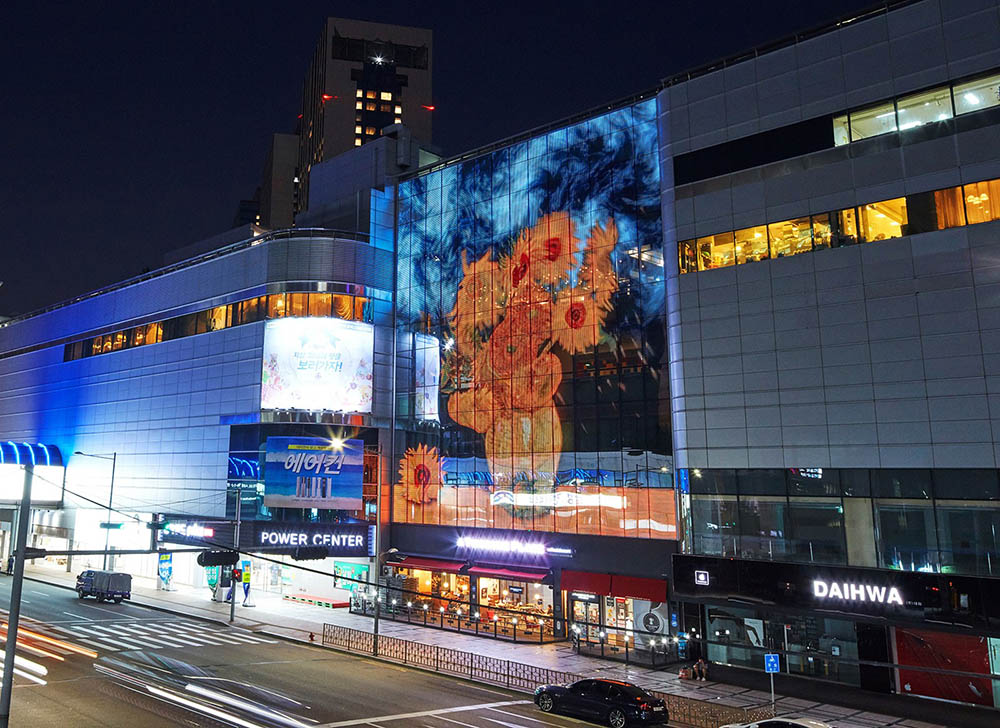

- Media Architecture Ingenious design makes it a perfect match for building façades.

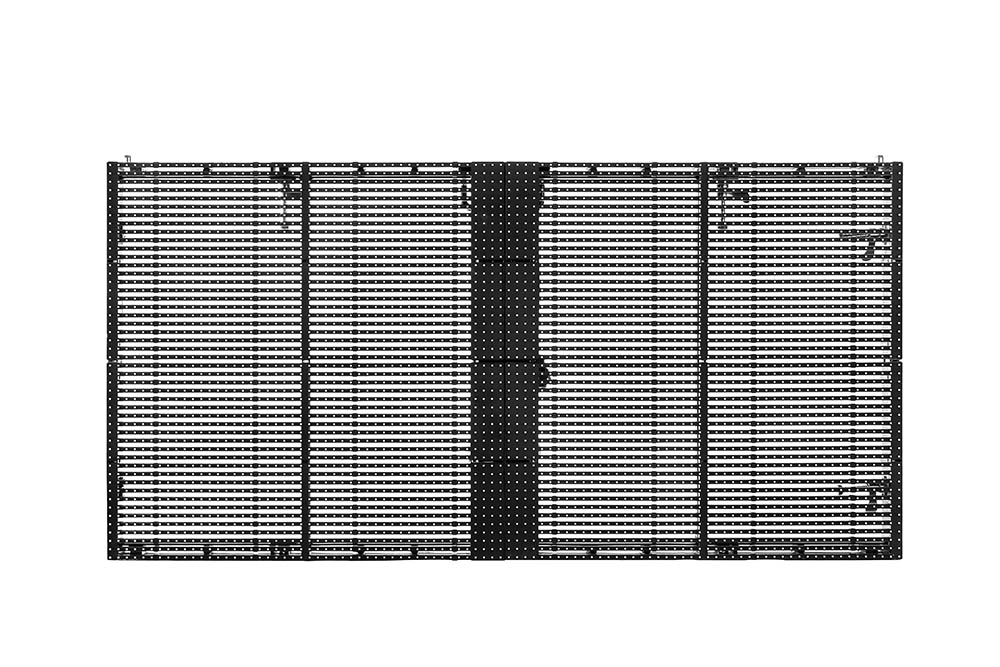

Front of Transparent Glass Cabinet (1)

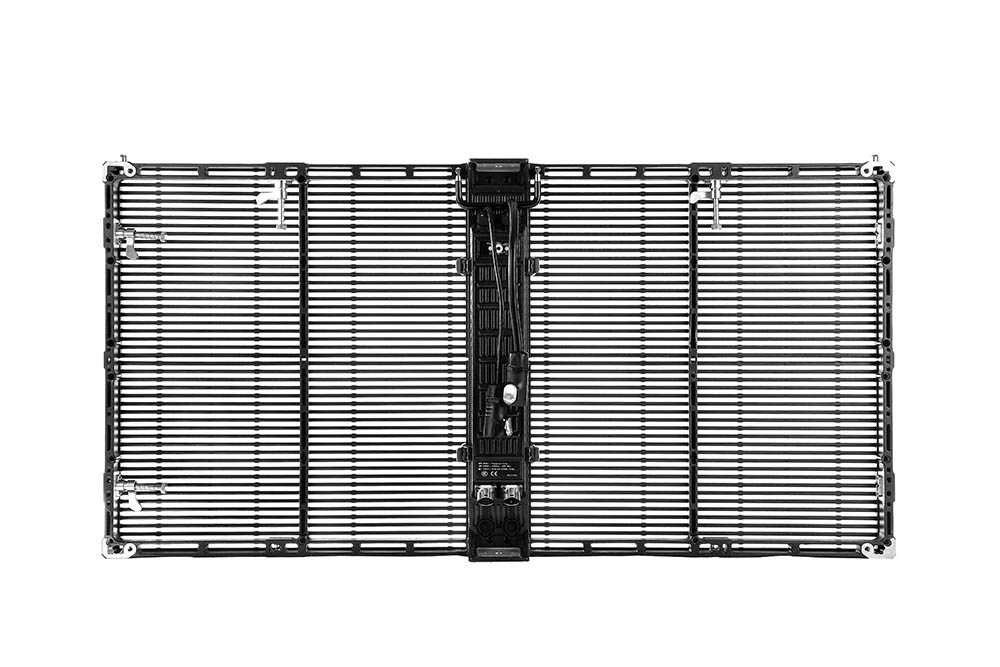

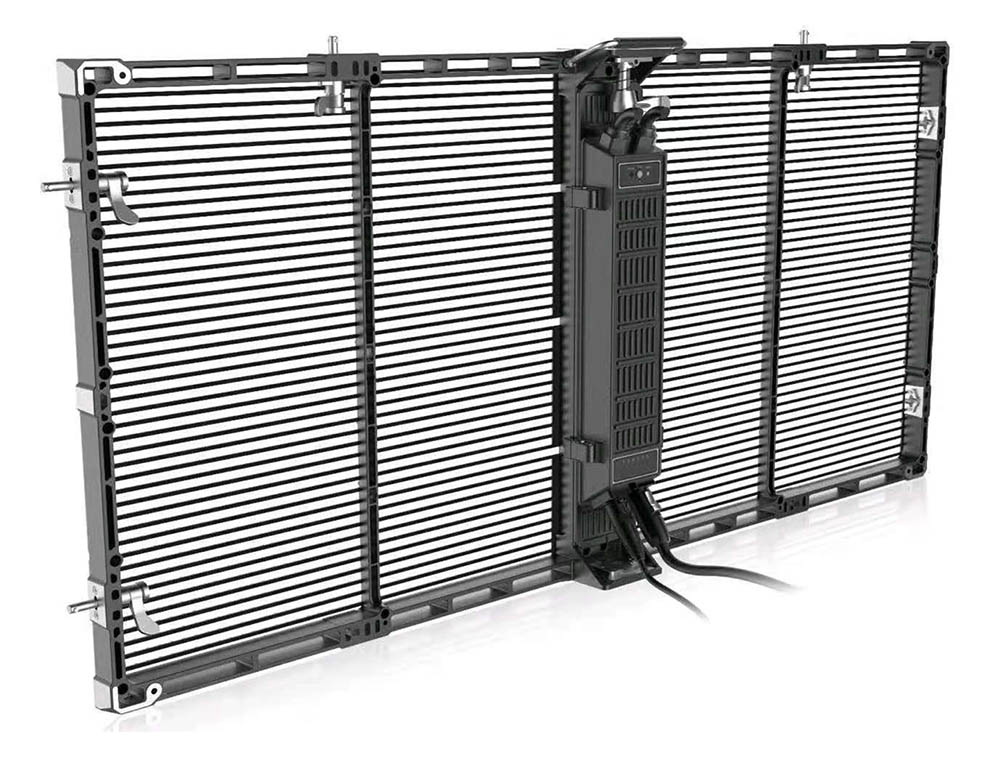

Rear of Transparent Glass Cabinet (2)

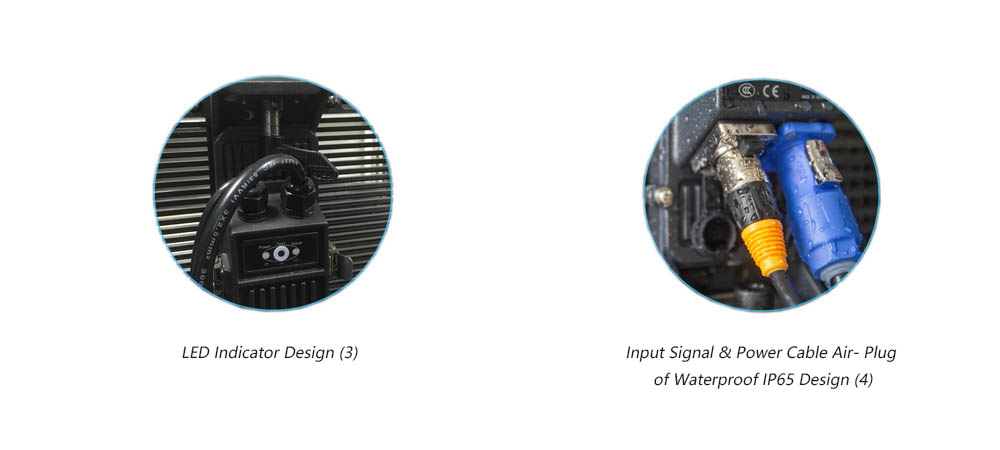

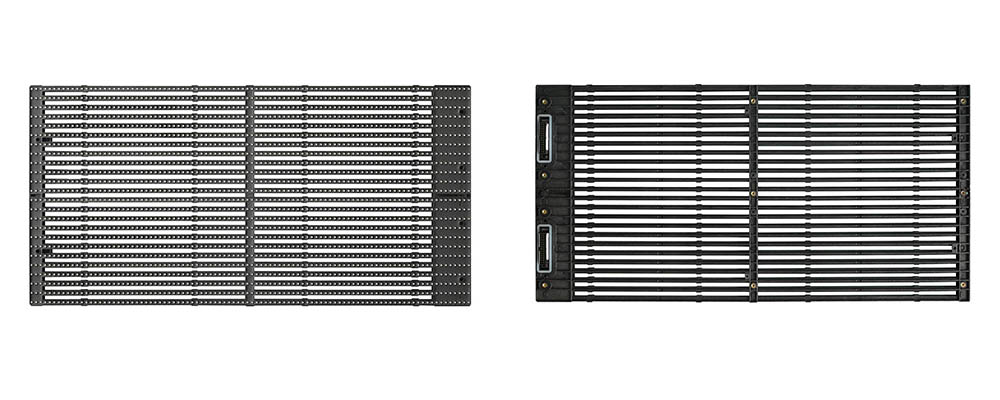

Forward LED Luminescent & Modular Design (5)

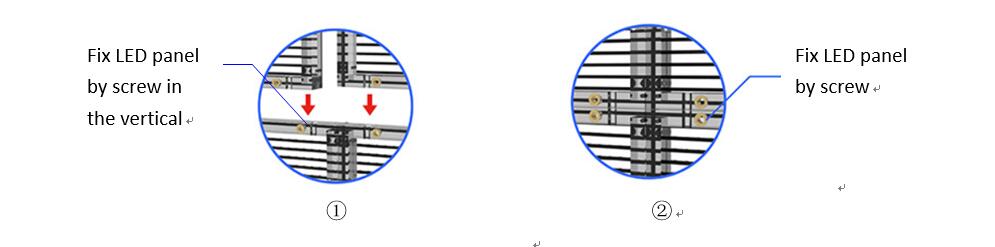

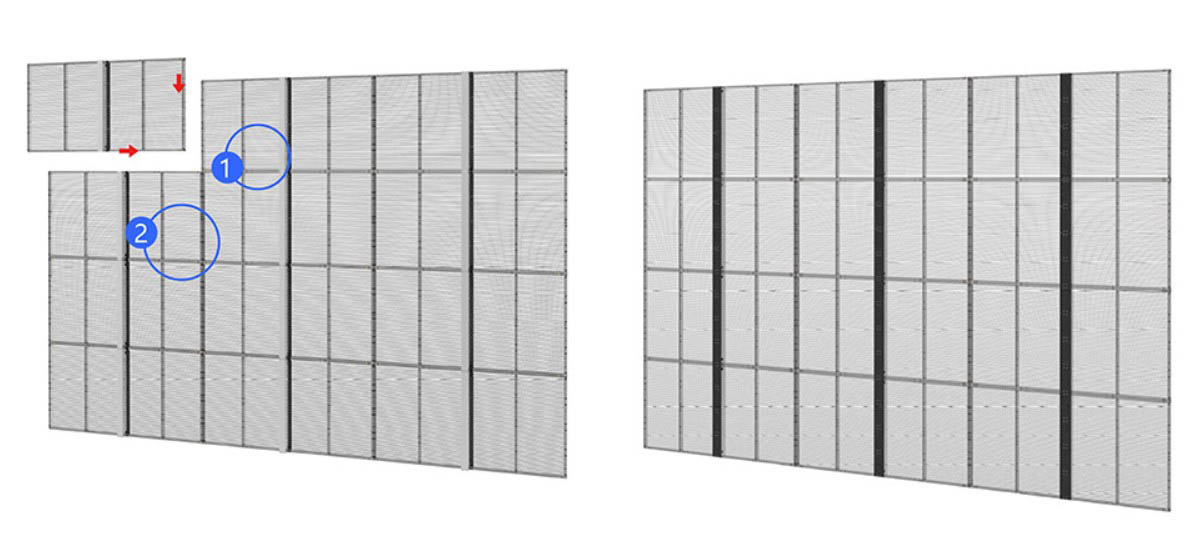

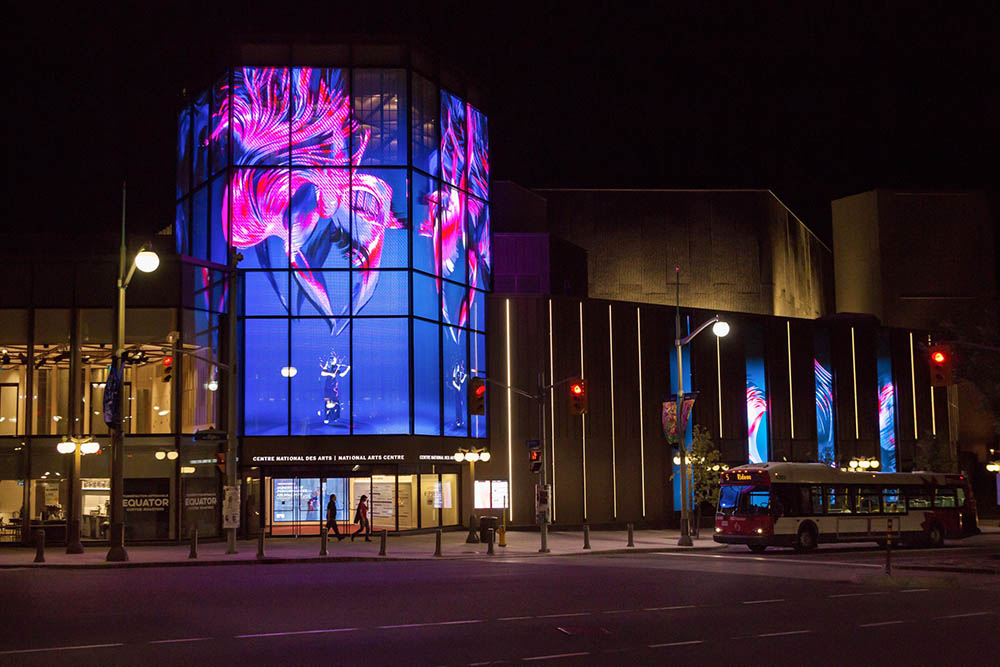

Installation effect drawing (5)

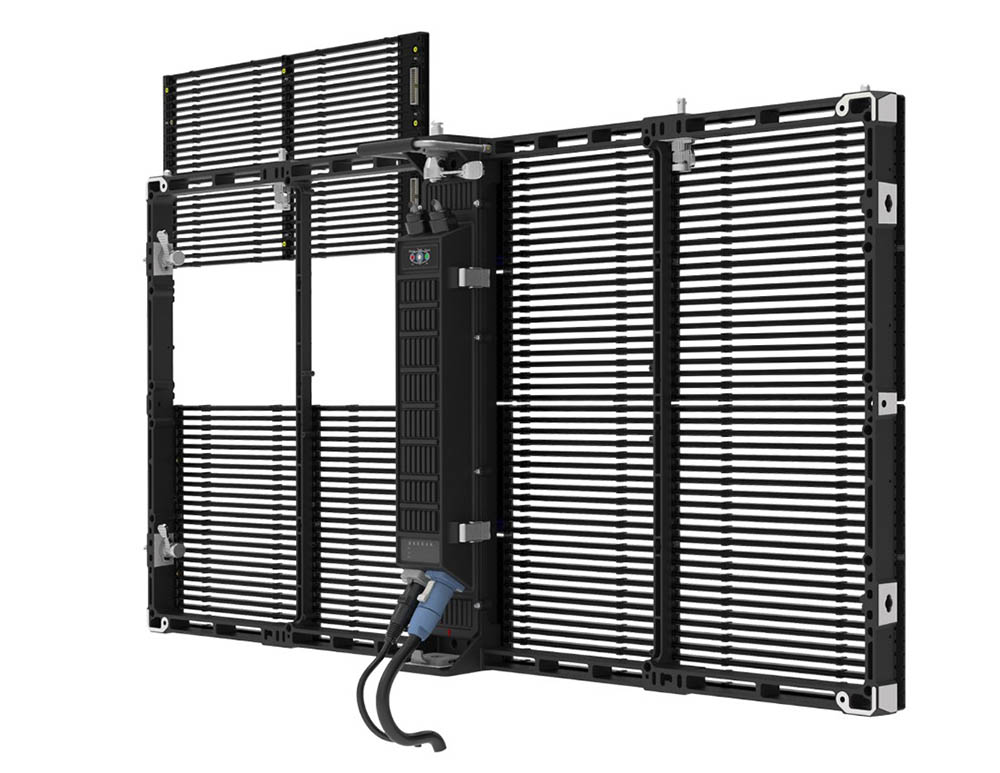

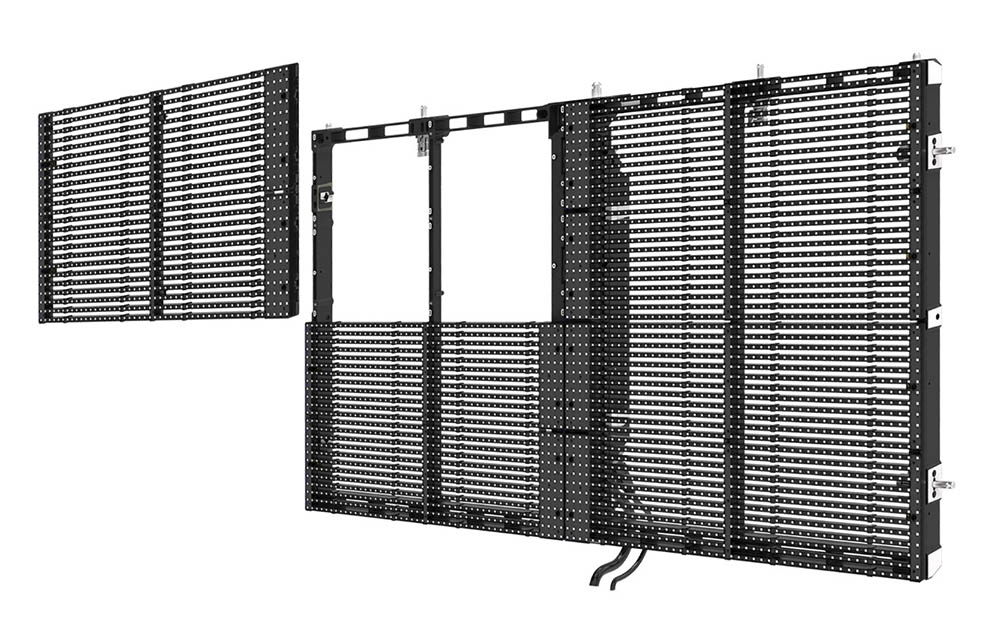

Front maintenance and rear maintenance (6)
Technical Parameters
| Parameters | TGI-0205H | TGI-0307L | TGI-0307H | TGI-0510H | TGI-1010L | |
| Cabinet | LED | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel pitch(mm) | H 2.6 / V 5.2 | H 3.9 / V 7.8 | H 3.9 / V 7.8 | H 5.2 / V 10.42 | H 10.42 / V 10.42 | |
| Resolution(W x H) | 384*96 | 256*64 | 256*64 | 96*96 | 96*96 | |
| Size(W x H x D mm) | 1000x1000x55 | 1000x1000x72.5 or 1000x1000x72.5 | 1000x1000x72.5 or 1000x1000x72.5 | 1000x500x80 | 1000x500x80 | |
| Square(㎡) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
| Weight(kg/unit) | 4.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| Pixel density(pixels/㎡) | 73728 | 32768 | 32768 | 18432 | 9216 | |
| Protection Level | IP30 | IP30 | IP30 | IP30 | IP30 | |
| Flatness of the cabinet(mm) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Optical Parameters | Color temperature adjustable(K) | 3200-9300 | 3200-9300 | 3200-9300 | 3200-9300 | 3200-9300 |
| Brightness(nits） | 3500 | 2200 | 4800 | 4500 | 1200 | |
| Viewing angle, horizontal（°） | 120 | 120 | 120 | 120 | 120 | |
| Viewing angle, vertical（°） | 140 | 140 | 140 | 140 | 140 | |
| Transparent | 55% | 73% | 55% | 67% | 67% | |
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | |
| Electrical Parameters | Power consumption, Max.(watts/㎡） | 720 | 360 | 600 | 600 | 600 |
| Power consumption, Typical(watts/㎡） | 240 | 120 | 200 | 200 | 200 | |
| Input voltage(V) | AC 110/220 | AC 110/220 | AC 110/220 | AC 110/220 | AC 110/220 | |
| Visual Refresh | Drive method | Static Scanning | Static Scanning | Static Scanning | Dynamic ¼ Scanning | Dynamic ½ Scanning |
| Frame frequency(HZ) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | |
| Gray Scale(Bits) | 15 | 15 | 15 | 15 | 15 | |
| Refresh Rate(HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | |
| Applications Environment | LED life time(H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Operating temperature(℃） | -30~50 | -30~50 | -30~50 | -30~50 | -30~50 | |
| Storage temperature(℃） | -35~85 | -35~85 | -35~85 | -35~85 | -35~85 | |
| Operating humidity(RH) | 10~90%（non-condensing） | 10~90%（non-condensing） | 10~90%（non-condensing） | 10~90%（non-condensing） | 10~90%（non-condensing） | |
| Storage humidity(RH) | 10~95%（non-condensing） | 10~95%（non-condensing） | 10~95%（non-condensing） | 10~95%（non-condensing） | 10~95%（non-condensing） | |
Application

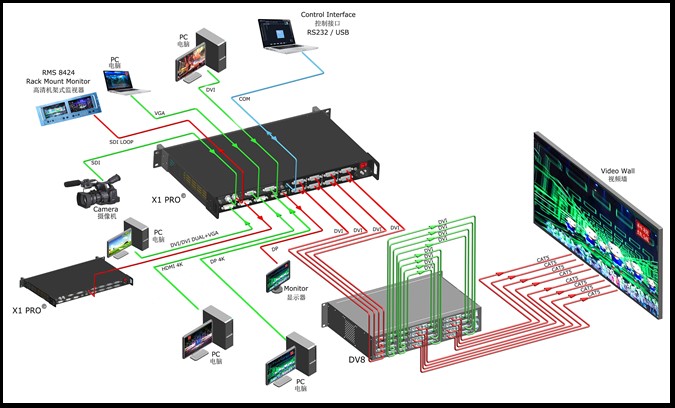

Control Topology
Packing
There are three different kinds of packing, you can choose according to the actual situation.
Flight cases
Fumigation-free wooden cases
Honeycomb cases
